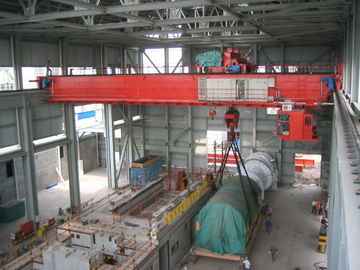

32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist

32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist
32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist 32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist 32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist

Large Image :  32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist

Product Details:
Place of Origin: China
Brand Name: Encore
Certification: ISO 9001:2008
Model Number: LDH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container packing
Delivery Time: 35 days
Payment Terms: L/C, T/T
Supply Ability: 80,000 Sets per Year
Detailed Product Description
Color: Red / Orange / Yellow Material: Q235B / Q345B
Capacity: 32 Ton Span: 10.5m - 31.5m
Lifting Height: 4m - 30m Duty Group: ISO M4 - ISO M6
High Light:

overhead travelling crane

,

double girder bridge crane



30 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist For Warehouse/Power Station/Railway

Description:

Euro type electric double girder overhead crane with wire rope hoist is new generation of overhead crane. It incorporates modular design for easy maintenance and smaller size. But the reliability is much better than old version.

The designing standard is in accordance with DIN regulations of German.



Features:

1. Material: All compression structural part of crane’s components chosen material with fine quality and meet regulation. The important material has quality guarantee and inspection report.

2. Welding: In view of important welding seam and stress is more than tension weld of 70% allowance stress, conducting fault detection check and take out 5% weld length by ultrasonic test. Inspection report provided to user.

3. Wire rope hoist: smaller size but better performance. Less noise and outstanding mechanical design.

4. Motor: Drive motor must use China Top Brand: Jiangte Motor. Manufacturer have good achievement used and provided detailed and actual parameter prove that it is good performance product. Insulation class ≧ F; Protective class ≧ IP54.

5. Electric system: Inverter from famous brand ABB can make lifting and traveling in any speed you want specifically for your work.

6. Control panel: 3 ways are optional based on budget or need: Cabin with joystick panel, wireless control panel or pendent control panel.

7. Painting: All steel is treated by sand blasting before doing paintings. There are 3 layers of paintings. The bottom layer is zinc painting to prevent from rusting.   The color of top surface should be average.

8. Limit switch for safety: mechanical limit switch: overload limit, height limit, rail end stop limit for traveling. Electric protection: short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection.





Applications:



1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses, where service requirements are infrequent.

2. Medium duty cranes for machine shops and general industrial use both indoor and outdoor application.

3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants & induction furnace.

4. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for hot metal application on request.

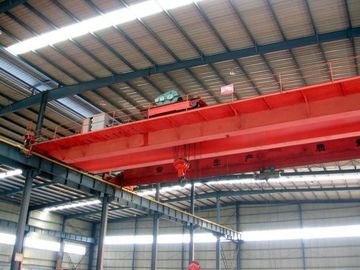

32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist 0






Specifications:



Capacity 32t

Span

m

7.5

10.5

13.5

16.5

19.5

22.5

28.5

31.5

Crane duty class

A5~A6

Hoist duty class

M5

Lifting height

m

4,6,9,12,18,24,30

Speed

Lifting V1

m/min

4

Lifting V2

4/1

Lifting V3

4/0.4

Cross traveling V

10;  20;  25;  32;  40

Crane traveling V

20;  25;  32;  40;  50;  63;  80

Wheel Load

Max

KN

28.7

31.0

33.3

35.7

38.4

40.9

44.4

47.3

50.7

Minimum

4.8

6.1

7.8

10.0

12.5

14.8

18.3

21.1

24.4

Weight

Trolley

KG

618

Crane

2388

2959

3668

4549

5554

6503

7892

9015

10364

Power



3 phase 380V-420V







Competitive Advantage:

1. Light dead-weight, low noise and few faults, generally used in normal working condition.
2. Desiged base on DIN standard from German.
3. Save the power, lower wheel load, so it can reduce the cost of support beam.
5. Adjustable speed if client request.

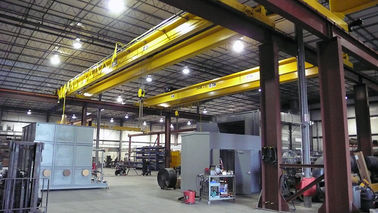

32 ton Heavy Duty Double Girder Overhead Crane With Electric Hoist 1
