Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

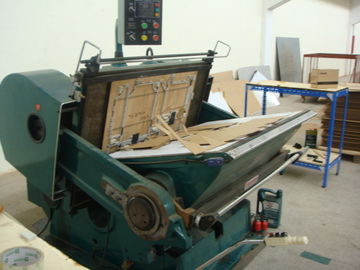

Large Image : Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

Product Details:

Place of Origin:	Hebei
Brand Name:	Xintian
Certification:	CE ISO9001:2000
Model Number:	PYQ

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	pallet
Delivery Time:	30-90 days
Payment Terms:	TT，L/C
Supply Ability:	2 sets per month

Contact Now

Detailed Product Description

Highlight:	corrugated carton box making machine

Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

Functions and Features:

Usage:

The flat creasing and die-cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. In general, it is applicable to printing packaging decoration and plastic industries. This machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.

Use and characteristics :

1. High strength dve to one piece casting by using top quality materials for machine body .

2. Smooth running , big pressure and low noise are obviously remarked as 3-step helical

gear mechanism is adopted .

3. Single plate electromagnetic clutch is sensitive sub reliable .

4. Operation altitude is reasonably arranged , moving-bed opens to its optimum .

5. Safty system is reatly reliable .

Note :( The color of equipment can be from choose )

Technical parameter

Model	Inner chase size	speed	Max.embossing length	Motor power	Machine weight	Overall dimensions
ML750	750*520mm	25±3	<15mm	2.2kw	1800kg	130013001700mm
ML930	930*660mm	20±3	<25mm	3.0kw	3000kg	178015901450mm
ML-1100	1100*800mm	20±2	<32mm	5.5kw	4500kg	180019001480mm
ML-1200	1200*820mm	20±2	<35mm	5.5kw	4900kg	180020001520mm
ML-1300	1300*920mm	18±2	<40mm	7.5kw	5600kg	180021201600mm
ML-1400	1400*1000mm	18±2	<40mm	7.5kw	6500kg	180022201650mm
ML-1500	1500*1050mm	18±2	<50mm	7.5kw	7500kg	180023001700mm
ML-1600	1600*1150mm	18±2	<50mm	7.5kw	8500kg	180024201750mm
