50KG - 200KG 50KW Induction Melting Furnace G/T-5-1500 1500KW

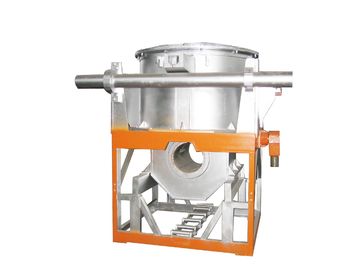

Large Image : 50KG - 200KG 50KW Induction Melting Furnace G/T-5-1500 1500KW

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	XINLIAN
Model Number:	GYT200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Delivery Time:	25-30 days after advance payment
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Highlight:	electrical induction furnace

50KG - 200KG 50KW Induction Melting Furnace G/T-5-1500 1500KW

Specifications:

These equipments are suitable for copper and copper alloy melting and casting.

Type	Content(t)	Ele. Capacity(KW)	Voltage(V)	Temperature(° C)	Melting Rate(t/h)
G/T-0.15-45	0.15	45	380	1200	0.15
G/T-0.3-75	0.3	75	380	1200	0.3
G/T-0.5-120	0.5	120	380	1200	0.5
G/T-0.75-185	0.75	185	380	1200	0.75
G/T-1-240	1	240	380	1200	1
G/T-1.5-400	1.5	400	380	1200	1.5
G/T-2-500	2	500	380	1200	2
G/T-3-700	3	700	380	1200	3
G/T-5-1500	5	1500	380	1200	5
Note: For brass, the Ele. Capacity will be 0.85 of the figure; Temperature: 1250 ° C

Description:

1. Minimum Capacity (T): 0.15

2. Melting Furnace Rated Capacity (T):0.8

3. Holding Furnace Rated Capacity (T): 1.5

4. Rated Voltage (V): 380

5. Phase Number: 3

6. Frequency of Input Current (HZ): 50

7. Melting Rate ( t/h): 0.2

8. Power Consumption(kw h/t) : 300

9. Temperature Holding Power (kw): 30

10. Rated Power (kw): 60

11. Rating Working Temperature (℃): 1250

12. Cooling Water Pressure (Mpa): 0.2-0.4

13. Cooling Water Consumption (t/h): 1.6 (Coil water jacket)

14. Weight of Iron Core (kg): 221

15. Weight of Molten Hook (kg): 45

Product Introduction:

The born and development of Melting Furnace for copper rod casting system that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process

Advantages:

i) Stable product quality;

ii) Low energy consumption;

iii) Removable inductor maintain easily;

iv) PLC controlling, and servo motor driven system;
