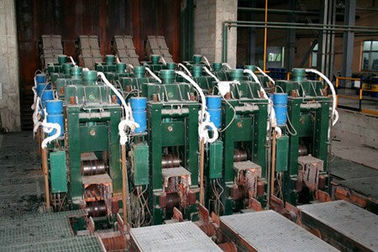

OEM Steel CCM Round Billet Casting Machine with Cooling Bank
radius: R6M, R8M, R10M
Strand number :1 - 8 strands
safe operation
Low energy and high efficiency
We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.
Description:
1. Basic standby technical parameters:
Steel billet casting machine radius |
6m, 8m, 10m |
Strand quantity |
1, 2, 3 strands |
Ladle support type |
Ladle turret, Ladle car |
Tundish carriage |
Semi-portal, cross sliding function |
Casting method |
Metering nozzle, open casting |
Secondary cooling |
Water cooling , 1 adjusting circuit |
Withdrawal straightening machine |
Totally 5 roller, progressive straightening |
Roll table |
Chain group centralized drive |
Dummy bar |
Rigid, with self-adapting dummy bar head |
Billet cutting |
Hydraulic cutting machine |
Billet conveying |
Group centralized live roller table |
Cooling bank type |
Simple cooling bed |
2. Technical process description and capacity of steel billet CCM
Induction furnace:
Nominal capacity |
30T |
Tap-to-tap cycle |
60min |
Furnace quantity |
2set |
Production capacity
Working days |
330 days/year |
Average number of daily furnace |
24/day |
Production capacity |
300,000t/year |
3. Casting speed, productivity and strand quantity
Round billet size range:φ60~φ500
Round billet CCM castig speed range:
Φ60~120 1.6~2.5m/min
Φ150~240 0.8~1.2m/min
Φ250~500 0.5~0.8m/min
The calculation results is the ideal state of the production, please according to own actual situation of adjustment.
Steel grade |
Casting grade(m/min) |
Effective deformation rate(ε) |
Allowable deformation rate(εmax) |
Straight carbon steel |
0.8~2.5 |
Please refer to the computational table |
0.25 |
Low alloy steel |
0.8~2.0 |
Please refer to the computational table |
0.15~0.2 |
4. CCM equipment parts list
№ |
Equipment name |
|
1 |
Ladle turret |
|
2 |
Tundish car |
|
3 |
Tundish |
|
4 |
Mould |
|
5 |
Foot roll of mould |
|
6 |
Mould cover |
|
7 |
Oscillator device |
|
8 |
Secondary cooling spray tube |
|
9 |
Secondary cooling guiding section rod |
|
10 |
Secondary cooling vapor exhausting system |
|
11 |
Withdrawal and straightening machine |
|
12 |
Casting blank vibration prevention system |
|
13 |
Dummy bar |
|
14 |
Dummy bar storage device |
|
15 |
Shears approach roller |
|
16 |
Flame cutting machine |
|
17 |
Automatic cut-to-length device |
|
18 |
Travelling roller |
|
19 |
Knockout roller |
|
20 |
Steel transverse delivering machine |
|
21 |
Hydraulic station system |
|
22 |
Secondary cooling water breaker |
|
23 |
Cooling automation water distribution plant |
|
24 |
Electric control equipment |
|
24.1 |
Control panel |
|
24.2 |
Field instrument |
|
24.3 |
Computer system |
|
25 |
Steel platform |
