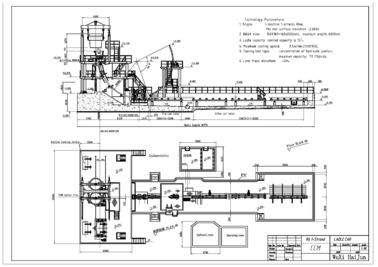

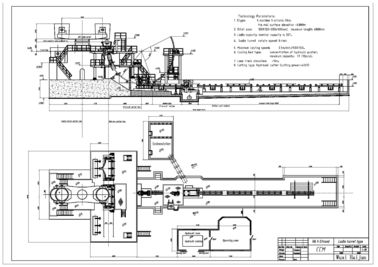

Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster
Ladle car or ladle turret
Billet cutting:Flame cutting machine
radius: R6M
Strand number:1 strand
with ISO certification
Description:
1. Basic standby technical parameters:
|
Steel billet casting machine radius |
6m |
|
Strand quantity |
1 strand |
|
Ladle support type |
Ladle car or ladle turret |
|
Tundish carriage |
Semi-portal, cross sliding function |
|
Casting method |
Metering nozzle, open casting |
|
Secondary cooling |
Water cooling , 1 adjusting circuit |
|
Withdrawal straightening machine |
Totally 5 roller, progressive straightening |
|
Roll table |
Chain group centralized drive |
|
Dummy bar |
Rigid, with self-adapting dummy bar head |
|
Billet cutting |
Flame cutting machine |
|
Billet conveying |
Group centralized live roller table |
|
Cooling bank type |
Simple cooling bed |
2. Technical process description and capacity of steel billet CCM
Induction furnace:
|
Nominal capacity |
10T |
|
Tap-to-tap cycle |
60min |
|
Furnace quantity |
2set |
Production capacity :
|
Working days |
330 days/year |
|
Average number of daily furnace |
24/day |
|
Production capacity |
100,000t/year |
3. Casting speed, productivity and strand quantity
R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:
|
Casting sectional area(mm) |
100×100 |
125×125 |
150×150 |
|
Casting speed(m/min) |
3.0 |
2.7 |
2.5 |
|
NO. |
Billet size |
Casting speed |
hourly output (tons) |
Daily output 24hour (tons) |
Annual output(330days) (tons) |
|
1 |
100×100 |
3.0m/min |
12.01 |
288. |
95123 |
|
2 |
125×125 |
|
