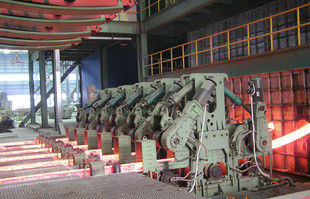

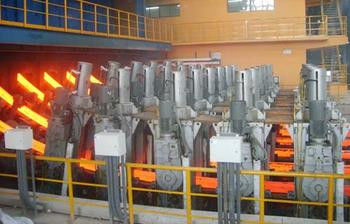

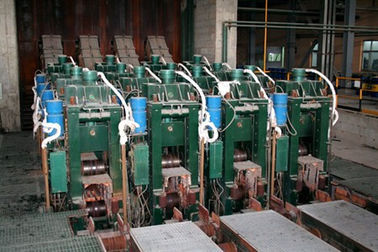

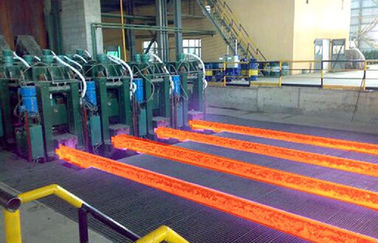

1 Strand Continuous Casting Machine

1 Strand Continuous Casting Machine
1 Strand Continuous Casting Machine 1 Strand Continuous Casting Machine 1 Strand Continuous Casting Machine 1 Strand Continuous Casting Machine 1 Strand Continuous Casting Machine

Large Image :  1 Strand Continuous Casting Machine

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R6M, R8M, R10
Payment & Shipping Terms:
Minimum Order Quantity: 3 strand
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

die casting equipment

,

Billet Continuous Casting Machine



1 Strand Continuous Casting Machine



CCM continuous casting machine

Strand number :1 / 2 / 3 strands

radius: R6M, R8M, R10M

with ISO certification





1. Basic standby technical parameters:



Steel billet casting machine radius

6m,8m,10m

Strand quantity

1,2,3 strands

Ladle support type

Ladle turret,Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM



Induction furnace:

Nominal capacity

30T

Tap-to-tap cycle

60min

Furnace quantity

2set



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

300,000t/year



3.  Casting speed, productivity and strand quantity

  Round billet size range:φ60~φ500

   Round billet CCM castig speed range:

                     Φ60~120   1.6~2.5m/min

                     Φ150~240  0.8~1.2m/min

                     Φ250~500  0.5~0.8m/min

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

0.8~2.5

Please refer to the computational table

0.25

Low alloy steel

0.8~2.0

Please refer to the computational table

0.15~0.2





4. CCM equipment parts list

Equipment name




1

Ladle turret



2

Tundish car



3

Tundish



4

Mould



5

Foot roll of mould



6

Mould  cover



7

Oscillator device



8

Secondary cooling spray tube



9

Secondary cooling guiding section rod



10

Secondary cooling vapor exhausting system



11

Withdrawal and straightening machine



12

Casting blank vibration prevention system



13

Dummy bar



14

Dummy bar storage device



15

Shears approach roller



16

Flame cutting machine



 17

Automatic cut-to-length device



18

Travelling roller



19

Knockout roller



20

Steel transverse delivering machine



21

Hydraulic station system



22

Secondary cooling water breaker



23

Cooling automation water distribution plant



24

Electric control equipment



24.1

Control panel



24.2

Field instrument



24.3

Computer system



25

Steel platform





We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.



1 Strand Continuous Casting Machine 0



1 Strand Continuous Casting Machine 1 1 Strand Continuous Casting Machine 2
