Product Details:
Payment & Shipping Terms:
|
| Color: | Silver | Surface Treatment: | Galvannized Or Silicon Power Plated |
|---|---|---|---|
| Material: | Carbon Steel / Ss 304, 316, 316L | Type Of Cage: | Any Type |
| Thickness: | Φ3, 3.2, 3.5, 3.8, 4. | ||
| High Light: | dust collector Cages,filter bag cages and venturi |
||

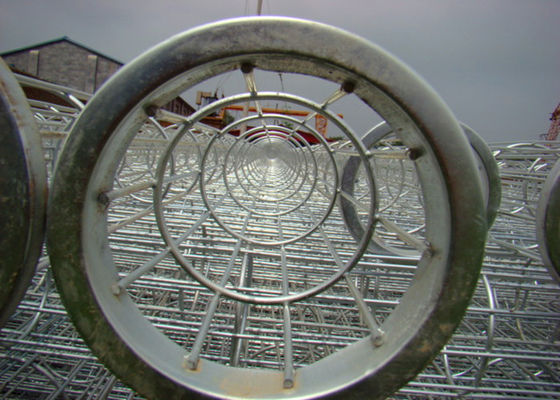

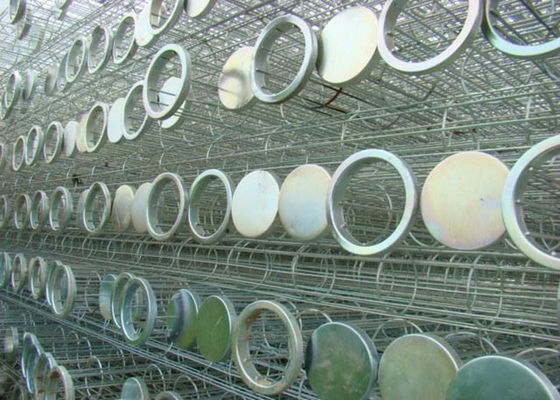

Any Type Industry Dust Collector Bag Filter Cage with Zinc Galvanized Treatment
Quick Detail:
1. Ventury filter cages-ISO9001:2008 Certified
2. Carbon or stainless steel
3. Galnanized or silicon plated surface
4. Any siz
Description:

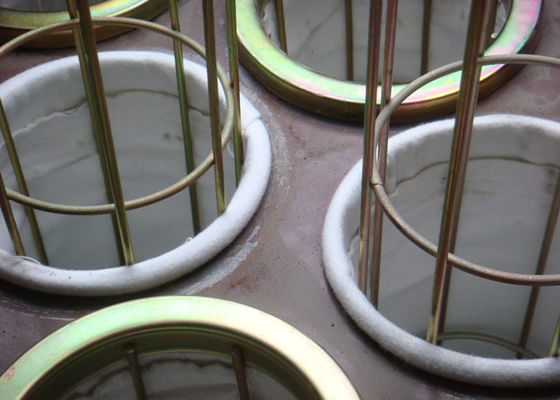

bag Filter cage with Zinc galvanized Surface Finish using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded that can avoid the pinholes from seam filter bag.
The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
Specifications:
Ventury filter cages
The ventury filter cages from China manufacturer is a rib of a filter bag and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1. material of cage: carbon steel/SS304, 316, 316L
2. type of cage: any type
3. type of the horizontal bar: Any type
4. surface treatment: Galvannized or silicon power plated
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
The thichkness of the longitudinal wire can be Φ3, 3.2, 3.5, 3.8, 4.
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100mm to 200mm) | ||
| Wire thickness: | Wire thickness ranges are 2mm to 5mm | ||
| Material: | Carbon Stee, Galvanized Steel, Stainless Steel | ||
| Finishment: | Epoxy, PVC vinyl coating | ||
| Packaging: | Cages are packed in custom designed cartons | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
||
| Advantages: | 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 4. economical maintenance(almost no Maintenance required) 5.prominent effect in removing dust from Filter by pulsing 6.easy to install 7.no ventury installation required |
||
|
Standard Technical Data
|
|||
| Round Style | Diameter(mm) | Bag Diameter(mm) | Length(mm) |
| 115 | 120 | 2000,2400 2800, 3200,3600,4000, 4400,4800,5200, 5600,6000,7000 |
|
| 125 | 130 | ||
| 147 | 152 | ||
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length(mm) |
| 800 | 800 | 2000 3000 4000 5000 6000 |
|
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm |
1500X750x25mm |
||
Notices:
We make filter cages of different shapes and dimensions to meet customers’ requirements. To supply with perfect testing for our products.
Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP.
We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.
Applications:
Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust
Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum
Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder
