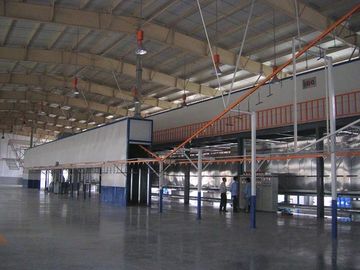

Tunnel Type Powder Coating Oven Insulation With Electrical / Gas And Diesel Fired
Tunnel Type Electrical , Gas Powder Coating Oven With Welded Or Modular Construction
Quick Detail:
1. Welded or modular construction with high quality M.S Sheet
2. Hot air circulating blower for uniform heat
3. High quality insulation (Glass/mineral wool) to eliminate heat loss
4. Electrical,gas& diesel fired (heat exchanger)
5. Digital temperature controller with auto on/off or manual
below data just for certain project case
|
number
|
item
|
data
|
|
1
|
External size:
|
L25×W1.25×H4.92mm(the rail top elevation)
|
|
2
|
Internal size:
|
W1.15×H2.55m
|
|
3
|
mode of drying tunnel:
|
Full bridge mode
|
|
4
|
Thickness of the insulated board:
|
Side plate:120mm, roof/bottom plate:120mm
|
|
5
|
Inner and outer plate of insulation layer
|
Internal plate:δ1.omm galvanized board, outer plate:δ1.omm
cold plate
|
|
6
|
Wind tube
|
δ 1.0mm galvanized board
|
|
7
|
Natural exhaust device:
|
1piece
|
|
8
|
Effective drying length:
|
About 40m(except the length of climbing section)
|
|
9
|
Baking time:
|
About 20 min
|
|
10
|
Heating time (empty furnace)
|
about45min
|
|
11
|
Heating temperature:
|
180～220℃ adjustable
|
|
12
|
380000cal burner
|
1piece FS38
|
|
13
|
380000cal heating box
|
1set(outer plate:δ1.0mm cold plate, internal plate:δ1.0mm galvanized board)
|
|
14
|
Heat induced draft fan
|
4-72NO6A,1450r/min,4KW,2pieces
|
|
15
|
380000cal heat exchanger
|
High temperature resistant stainless steel, quantity:1set
|
tunnel type powder coating curing oven system:
Whether electrical, gas or diesel fired. Whether batch type or conveyorized tunnel type. Designed and built
specially for Powder & Liquid curing purposes assuring you of low power consumption with uniform
temperature throughout the working space in the oven.
Melting & Curing constitutes a highly critical phase of the powder coating process. The curing schedules
recommended by the powder or liquid supplier must be strictly followed, if good adhesion & corrosion
resistance is to be achieved. While powder melts at approx.100°C, curing requires higher temperatures
usually between 180°C to 200°C.If the curing is inadequate, the quality will be brittle and flake-off easily.
If the powder coat is exposed to harsh heat its colour may change.
Construction:
Welded or modular construction with high quality M.S Sheet
Hot air circulating blower for uniform heat
High quality insulation (Glass/mineral wool) to eliminate heat loss
Electrical,gas& diesel fired (heat exchanger)
Digital temperature controller with auto on/off or manual
Asbestos gasketing, flap sliding doors
Perfect locking arrangement and heat resistant paint(in side)
