180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting

180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting
180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting

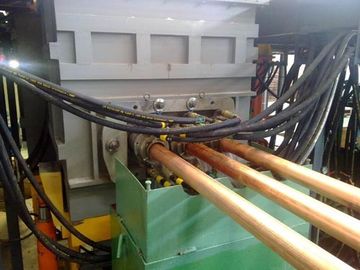

Large Image :  180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINLIAN
Model Number: GYT750
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25-30 days after advance payment
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
High Light:

medium frequency furnace

,

Main Frequency Induction Furnace



180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting





Description:



1. Minimum Capacity (T): 0.5

2. Melting Furnace Rated Capacity (T):2

3. Holding Furnace Rated Capacity (T): 4

4. Rated Voltage (V): 380

5. Phase Number: 3

6. Frequency of Input Current (HZ): 50

7. Melting Rate ( t/h): 0.75

8. Power Consumption(kw h/t) : 260

9. Temperature Holding Power (kw): 70

10. Rated Power (kw): 180

11. Rating Working Temperature (℃): 1200

12. Cooling Water Pressure (Mpa): 0.2-0.4

13. Cooling Water Consumption (t/h): 1.6 (Coil water jacket)

14. Weight of Iron Core (kg): 815

15. Weight of Molten Hook (kg): 105





Specifications:



These equipments are suitable for copper and copper alloy melting and casting.



Type

Content(t)

Ele. Capacity(KW)

Voltage(V)

Temperature(° C)

Melting Rate(t/h)

G/T-0.15-45

0.15

45

380

1200

0.15

G/T-0.3-75

0.3

75

380

1200

0.3

G/T-0.5-120

0.5

120

380

1200

0.5

G/T-0.75-185

0.75

185

380

1200

0.75

G/T-1-240

1

240

380

1200

1

G/T-1.5-400

1.5

400

380

1200

1.5

G/T-2-500

2

500

380

1200

2

G/T-3-700

3

700

380

1200

3

G/T-5-1500

5

1500

380

1200

5

Note: For brass, the Ele. Capacity will be 0.85 of the figure; Temperature(° C): 1250







Product Introduction:



The born and development of Melting Furnace for copper rod casting system that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process



Advantages:



i) Stable product quality;

ii) Low energy consumption;

iii) Removable inductor maintain easily;

iv) PLC controlling, and servo motor driven system;



180KW Industrial Melting Furnace 750KG 0.75 Main Frequency for copper casting 0
