Highlight: | pipe making machine |
---|
Three-Roll Alloy Steel Cold Pilger Mill , Tube Copper Making Machines
Quick Detail:
Type: cold pilger mill
Brand name: Hengli
Model number: LD40
Input material: common carbon steel, alloy, nonferrous metal
After-sales service provided: overseas service available
Place of Origin: Jiangsu, China (Mainland)
Used in: the field of Carbon pipes, Non-ferrous metal pipes, and so on.
Description:
DESCRIPTION OF THE MILL
In general, the pilgering process has two primary purposes:
*One, and most importantly, pilgering is a cold working process that greatly improves the material grain structure.
*Two, it is a way of reducing large amounts of the outside diameter and inside diameter of a preexisting tube very quickly. Reduction rates can be as high as nearly 100% on some alloys.
LD30 three-roller cold pilger mill is applicable to state rolling,such as carbon steel,alloy steel,stainless steel,non-ferrous metal,rare metal and so on,with the characteristics of good turnoff precision,high surface roughness ect.
Applications:
Be used in the field of Carbon pipes,Non-ferrous metal pipes,and so on.
Detailed Product Description
No. |
Name |
LD30 |
|
1 |
Shell OD(mm) |
17~38 |
mm |
2 |
Shell WT(mm) |
<2.5 |
mm |
3 |
Shell Length(mm) |
5 |
mm |
4 |
Finished tube OD(mm) |
15~35 |
mm |
5 |
Finished tube WT(mm) |
0.1~2 |
mm |
6 |
Finished tube Length(m) |
12 |
m |
7 |
Stroke Frequency of Mill time/min |
65~110 |
time/min |
8 |
Stroke of Rolling mill bus(mm) |
475 |
mm |
9 |
Feeding Length(mm) |
2~8.3 |
mm |
10 |
rotation angle |
54° |
|
11 |
Roll Diameter(mm) |
75 |
mm |
12 |
Power(KW) |
37 |
KW |
13 |
Size (L×W×H) |
20×3×1.3 |
m |
Technical Documents
All labels on machines and layout drawings, electrical diagram, operated manual will be English and will be offered by manufacturer after machine transported.
Payment
30% down payment should be paid by T/T, 70% of the contract value by T/T 7 says before shipment.
Delivery
Competitive Advantage:
Why chose us?
We provides custom designed solutions on pilger mills and tube reducers. Our true value is in our expertise in engineering designs through active tri-matrix software and then constructing these designs using our 15+ years of production & maintenance experience. We pride ourselves in offering good engineering solutions to your tube manufacturing process with a commitment to customer satisfaction. Our global customer base covers all alloys such as aluminum, stainless steel, copper, titanium, zirconium, gold, silver, platinum, palladium, and other special alloy materials
Services
We engineering staff carefully assesses customer's tool designs to ensure proper material flow occurs for your tube alloy. This process includes analysis of tube products and tube transitions. Solutions are then derived from this data and corrective measures may be initiated for your tube process.

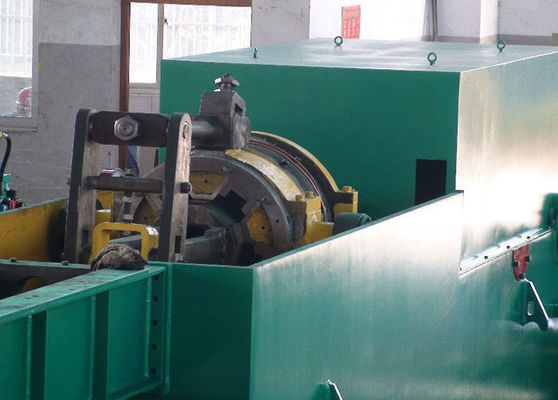

LD40 cold pilger mill:

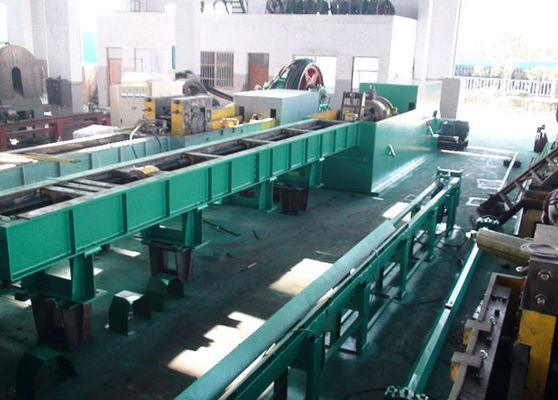

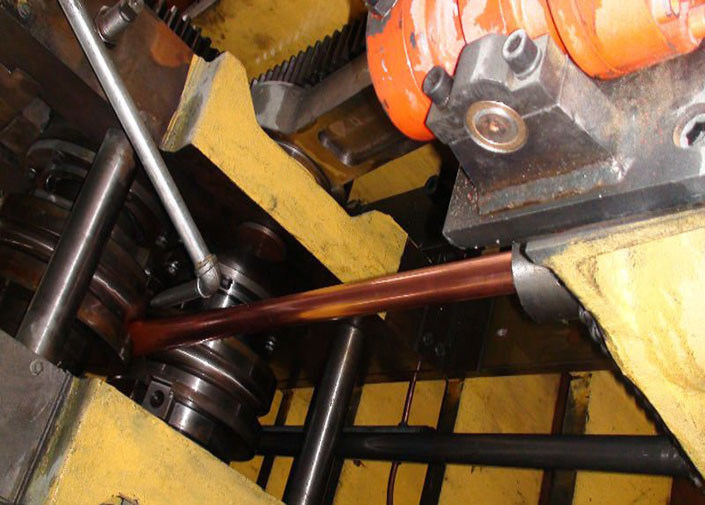

Reference photos for main equipment:
