Product Details:
Payment & Shipping Terms:
|
| High Light: | medium frequency furnace,Main Frequency Induction Furnace |
||
|---|---|---|---|

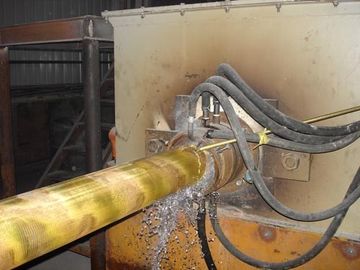

1.5 Main Frequency Induction Melting Furnace Copper Rod GYT1500
Description:
1. Minimum Capacity (T): 0.6
2. Melting Furnace Rated Capacity (T):3.5
3. Rated Voltage (V): 380
4. Phase Number: 3
5. Frequency of Input Current (HZ): 50
6. Melting Rate ( t/h): 1.5
7. Power Consumption(kw h/t) : 240
8. Temperature Holding Power (kw): 59
9. Rated Power (kw): 360
10. Rating Working Temperature (℃): 1200
11. Cooling Water Pressure (Mpa): 0.2-0.4
12. Cooling Water Consumption (t/h): 2.8 (Coil water jacket)
13. Weight of Iron Core (kg): 815
14. Weight of Molten Hook (kg): 210
Specifications:
These equipments are suitable for copper and copper alloy melting and casting.
|
Type |
Content(t) |
Ele. Capacity(KW) |
Voltage(V) |
Temperature(° C) |
Melting Rate(t/h) |
|
G/T-0.15-45 |
0.15 |
45 |
380 |
1200 |
0.15 |
|
G/T-0.3-75 |
0.3 |
75 |
380 |
1200 |
0.3 |
|
G/T-0.5-120 |
0.5 |
120 |
380 |
1200 |
0.5 |
|
G/T-0.75-185 |
0.75 |
185 |
380 |
1200 |
0.75 |
|
G/T-1-240 |
1 |
240 |
380 |
1200 |
1 |
|
G/T-1.5-400 |
1.5 |
400 |
380 |
1200 |
1.5 |
|
G/T-2-500 |
2 |
500 |
380 |
1200 |
2 |
|
G/T-3-700 |
3 |
700 |
380 |
1200 |
3 |
|
G/T-5-1500 |
5 |
1500 |
380 |
1200 |
5 |
|
Note: For brass, the Ele. Capacity will be 0.85 of the figure; Temperature(° C): 1250 |
|||||
Product Introduction:
The born and development of Melting Furnace for copper rod casting system that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process
Advantages:
i) Stable product quality;
ii) Low energy consumption;
iii) Removable inductor maintain easily;
iv) PLC controlling, and servo motor driven system;
