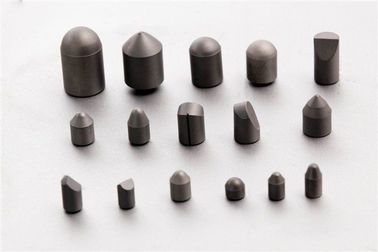

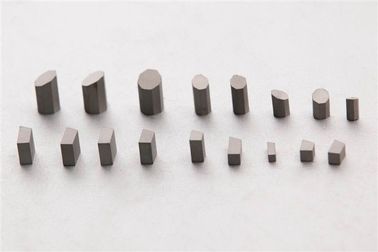

Tungsten Carbide Inserts PDC Cutter

Tungsten Carbide Inserts PDC Cutter
Tungsten Carbide Inserts PDC Cutter Tungsten Carbide Inserts PDC Cutter Tungsten Carbide Inserts PDC Cutter

Large Image :  Tungsten Carbide Inserts PDC Cutter

Product Details:
Place of Origin: Germany, Australia, China
Brand Name: ROSCHEN
Certification: ISO, API
Model Number: 4,6,8,10,12,14,16,18,19,20,22,24,25,26
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: Carton, wooden
Delivery Time: 15 days
Payment Terms: T/T, L/C at sight
Supply Ability: 2000pcs per week
Detailed Product Description
Name: Carbide Cutter Inserts Supplier: Tungsten Carbide Insert Pdc Cutter Manufacturers
Type: Tungsten Carbide Inserts Factory: Pdc Cutter Manufacturers
TCI Supplier: Tungsten Carbide Insert Manufacturers Feature: Good Quality Tungsten Carbide Insert Pdc Cutter
No: Tungsten Carbide Inserts Pdc Cutter TCI Factory: Pdc Insert, Pdc Insert Suppliers And Manufacturers
TCI Manufacturer: Tungsten Carbide Manufacturer, Supplier, Carbide Cutting Series: PDC Cutter
Series No: Polycrystalline Diamond Cutter Series Type: Tungsten Carbide Inserts PDC Cutter
Tungsten Carbide Inserts Manufacturer: Tungsten Carbide Inserts Manufacturers Series Model: Tungsten Carbide
Size: Dremel Tungsten Carbide Cutters Function: Cutting Tungsten Carbide
TCI Bits: Tungsten Carbide Cutting Bits TCI Blade: Tungsten Carbide Blade
TCI Bit Factory: Tungsten Carbide Bits TCI Wheel: Tungsten Carbide Cutting Wheel
High Light:

PCBN Cutting Tools

,

cutter bit



Tungsten Carbide Inserts PDC Cutter for Furnace / Crucibles / Heating Elements


Tungsten carbide


Chemical Compound




Tungsten carbide


Tungsten carbide is a chemical compound containing equal parts of tungsten and carbon atoms. In its most basic form, tungsten carbide is a fine gray powder, but it can be pressed and formed into shapes through a process called sintering for use in industrial machinery, cutting tools, abrasives, armor-piercing rounds, other tools and instruments, and jewelry.







Tungsten Carbide Products:



Roschen produce many standard and non-standard sizes of tungsten special parts, like tungsten pot, tungsten tube, tungsten funnel, tungsten boat, tungsten sheet.


Tungsten boat is a special kind of boat which is widely applied in metalizing, sintering, annealing in reducing atmosphere in electronics and light industries. As a special and effective boat vessel, which are widely used in metal evaporation, electron beam splash, and the heat process with sintering and annealing in vacuum coating industries. It is produced by our special production line and the quality is stable.





Applications:



Furnace parts, Targets for X-ray Diagnostics ,Semiconductor Base Plates, Crucibles, Heating Elements, Components for Electron Tubes, Cathodes and Anodes for Ion Implantation, Emission Cathodes for Electron Beam Evaporation, Tubes / Boats for Sintering of Capacitors, X-ray Radiation Shielding, Sputtering Targets, Electrodes. With effective response, steady and reliable quality, competitive price, various types tungsten boats are available. Contact with us if you have any question.





Tungsten Carbide Grade:



Cemented Carbide is widely used all over the world, because of its unique combination of strength, hardness and toughness satisfies the most demanding applications. Cemented carbides refers to metallic carbides - fine particles of tungsten carbide bonded or cemented together in a matrix of a metallic element of a lower melting point such as cobalt or nickel. We are a professional tungsten carbide manufacturer in our industry which has been specialized in producing various of tungsten carbide products for more than 50 years. Our products are with good quality and excellent performance. Any inquiry will be welcomed upon your specific inquiries with drawings.



Sintered with high-purity raw material, our products are exported to many different countries.

Please Kindly find the tungsten carbide grade chart.





Tungsten Carbide Grade Chart:





Grade ISO Grade Density g/cm3 Hardness HRA> T.R.S>N/mm² Recommended applications or performances
Conventional carbide grades
YG3 K05 15.20-15.40 91.5 1400 For finishing machining of cast iron,non-ferrous metals and fine turing screw thread, also for semi-finishing carbide products, medium grain.
YG3X K05 15.20-15.40 92.5 1300 For finishing processing of cast iron,alloy,non-ferrous metals,with best wearable performance in Nickle or cobalt carbides, fine grain.
YG4C   15.05-15.25 90 1620 For percussion drill bits and mining inserts, coarse grain.
YG6 K15-K20 14.85-15.05 90.5 1860 For rough machining of casting iron, finishing maching or semi-finishing of non-ferrous metals, works twice longer than YG3, medium grain.
YG6A K10 14.85-15.05 92 1600 For drawing dies and woodworking tools, fine grain.
YG6X K10 14.85-15.05 91.5 1800 For casting iron and non-ferrous metals,also for finishing maching
of hard-alloy steel and heat resisting alloy steel, fine grain.
YG7 K20 14.65-14.85 90 1900 Medium grain with good wear-resistance and good impact-resistance
YG8 K30 14.60-14.85 90 1760 For finishing maching of non-ferrous metal,metal tube, drawing dies,medium grain
YG8A K25-K30 14.6-14.85 90.5 2000 For the drawing dies and wood-working,runs longer than YG8, medium grain.
YG8X K30 14.60-14.85 90.5 2000 High hardness and oxidation resistance at high temperatures and good impact toughness, fine grain.
YG8C   14.55-14.75 88 2160 For button drill bits and the mining inserts, coarse grain.
YG10 K40 14.25-14.55 88 2160 For machining gray cast iron with a low hardness, medium grain.
YG11 K40 14.30-14.50 87 2060 For mining tools,wear parts, medium grain.
YG11C   14.20-14.40 86.5 2100 For tungsten carbide drills, drill bits, oil cone bits and mining inserts, coarse grain.
YG12 K40 14.10-14.40 87 2260 For rough machining of non-ferrous metals, medium grain.
YG15   13.9-14.2 86.5 2400 For high compression punching dies, mining tools, cold heading, medium grain.
YG18C   13.8-14.1 85 2200 For oil cone bits and mining inserts.
YG20   13.45-13.65 85 2230 For cold heading, punching dies, non-standard dies and moulds, medium grain.
YG20C   13.40-13.60 82.5 ≧2230 For standard bearings, dies and moulds specially in tooling, also for making screws, coarse grain.
YG22   13.15-13.55 83 2480 For non-standard dies, moulds, cold heading and punching dies, medium grain.
YG25C K50 12.9-13.1 90-91 2520 For punching stainless parts, special grade for cold heading and punching dies.
YN6   11.3 89-90 1600 For mechanical seal parts and wear parts.
YN8   14.6-14.8 92 1760 For mechanical seal parts and wear parts.
YT5 P10 11.3 92 ≧1310 For rouch machining casting carbon steels, alloy steels and punching parts.
YT5A   11.3 92 ≧1310 For rouch machining of casting carbon steels, alloy steels, punching parts, works much longer than YT5.
YT14   11.3 92 ≧1310 For finishing machining of carbon steels, alloy steels, semi-finishing cutting tools like milling,drilling.
YT15A   11.3 92 ≧1310 For finishing or semi-finishing steel, casting iron or alloy.
High-performance grades
YD40 K40 13.10-13.55 82.5 2480 For cold heading and punching dies and hot heading and punching dies, high impact resistance.
YD45   13.25-13.65 83 2480 A special grade for hot heading dies, high impact resistance.
YG011 K10 14.55-14.75 92.5 1840 Ultra-fine grain size, for machining glass fiber reinforced plastics, titanium alloys, hardened steel with a high hardness
YG012 K20 14.25-14.55 91 2160 Ultra-fine grain, for milling cutters and the hole-machining tool
YG013 K10 14.35-14.60 91.5 2060 Ultra-fine grain with good wear resistance and toughness, for wood-working tools
YG014 K05 14.65-14.95 93 1760 Ultra-fine grain, for finishing machining of non-ferrous metals and for wood-working tools
Special mining grades
YK5   14.80-15.10 89 2060 With high toughness and good wear resistance, it is suitable mainly for buttons and inserts used in small and medium size percussion drill bits for drilling medium hard rock formations
YK10   14.60-14.85 89.5 2260 With high toughness and good wear resistance, it is suitable mainly for buttons and inserts used in small and medium size percussion drill bits
YK20   14.30-14.60 86.5 2350 With high toughness and good wear resistance, it is suitable mainly for embedding rotary percussive drill bits for drilling medium hard and rather hard rock formations
YK25   14.35-14.70 87 2450 With high toughness and good wear resistance, it is suitable mainly for embedding rotary percussive drill bits for drilling medium hard and rather hard rock formations
YK40   13.90-14.20 86.5 2450 With high toughness and good wear resistance, it is suitable mainly for embedding rotary percussive drill bits for drilling medium hard and rather hard rock formations
YK45   13.80-14.20 86 2450 With high toughness and good wear resistance, it is suitable mainly for embedding rotary percussion drill bits for drilling medium hard and rather hard rock formations
YK50   13.80-14.20 85.5 2450 With ultra high toughness and good wear resistance, it is suitable mainly for embedding button drill bits, tri-cone drill bits for drilling medium-hard and rather hard rock formations
Cutting steel class grades
YT03 P10 14.75-14.95 91.5 1860 Suitable for the semi-finishing and finishing machining of non-ferrous metals, stainless steel
YT5 P30 11.50-13.20 90 1750 Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14 P20 11.20-11.80 91 1550 Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15 P10 11.10-11.60 91.5 1500 Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YS25 P25 12.80-13.20 91 1860 A special grade for mining steel and cast steel
SC30 P30 12.70-13.20 90 1600 Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate
YC40 P40 13.00-13.40 89.5 1860 Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well
YW1 M10 12.85-13.40 92 1380 Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2 M20 12.65-13.35 91 1680 Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3 M10 12.85-13.10 92 1420 It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel




Carbide Grades Chart Introduced From Abroad
Grade Typical property values Performance & Applications Equivalent to ISO
Density g/cm3 Bending Strength N/mm2 Hardness HRA
ZP10 11.95 1650 92 Semi-finishing and finishing of steel, steel castings and alloy steel. P10~P15
ZP10-1 11.1 1730 92 Excellent in wear resistance, strength in use and red hardness. Semi-finishing and finishing of steel, cast steel, for geable cast iron and continuous nodular cast iron also suitable for copying , threading and milling P10~P15
ZP20 11.4 1800 92 High in impact resistance and strength in use. Roughing and semi-finishing of steel, cast steel, forgeable cast iron and nodular cast iron. P15~P20
ZP25 12.6 1850 91 Roughing turning ,milling and depth drilling of carbon steel, steel castings, manganese steel and alloy steel. P20~P30
ZP30 12.6 1950 91 High in strength in use and impact resistance. Medium to heavy cutting of steel and cast steel, Also suitable for milling P25~P35
ZP35 12.7 2220 91 A versatile grade High in red hardness, strength in use and resistance to impact and thermal shocking. Roughing and strength cutting of steel and cast steel. P30~P40
ZM10-1 13.2 1650 92 High in red hardness and crater resistance .Capable of bearing impact load. finishing of cast iron alloy. mild steel, forgeable nodular cast iron and difficult-to-machine materials such as refractory steel, manganese steel, stainless steel. M10~M15
ZM15 13.8 1800 91 High in red hardness and strength in use; capable of resistiting high impact load. Semi-finishing or finishing of refractory steel, manganese steel, austenitic stainless steel, machining of cast iron M10~M20
ZM30 13.5 2000 90.5 High strength in use; capable of resisting high impact load, yet wear resistance comparatively low ,Roughing and semi-finishing of refractory steel, manganese steel, stainless stell, etc. M25~M30
ZK10UF 14.8 2000 93 Semi-finishing and finishing of cast-irons and nonferrous metals it's also the unique material of solid carbide tools for holing. M05~K15
ZK10-1 14.8 1600 91.5 Semi-finishing and finishing of cast iron and machining of cat alloy iron, bronze and copper. Suitable for machining of aluminum and aluminum alloys M05~K15
ZK10 14.9 1700 91.4 It's belong to the fine grain grade. excellent wear resistance. Finishing of cast iron. non-ferrous metals, non-metailic materials and hardened steel. Also suitable for turning and milling. M05~K15
ZK20 14.9 1800 90.5 Roughing and semi-finishing of cast iron. chilled cast iron, low alloy cast iron, non-ferrous metals and non-metallic materials. M10~K20
ZK30 14.8 2000 90 Roughing of marble, plastics as well as non-ferrous metals, copper and aluminum and cast iron. M20~K30
ZK40 14.6 2200 89 High in strength and impact resistance, Roughing and strength cutting of cast iron. M30~K40





Different Carbides Grade Chart
Standard ISO International Standard Code
P10 P20 P30 M10 M20 K10 K15 K20 K30
Chinese Standard YT15 YT14 YT5 YW1 YW2 YG6A YG6 YG6 YG8
YG6X YG8N YG8N
(Adamas) 495 499 434 548 548 AA   A B
(Carboloy) 350 370 370 320 370 905 883 883 44A
860
(Kennametal) KC740* KC710* KC850* KC910* K313 K68 K68 KC250* K1
(Valenite) VC165 VC165 VC55 VC2 VC2 VC2 VC2 VC2 VC1
VC7 VC125 VC5 VC27 VC27 VC28 VC28 VC28 VC101
VC5 VC5 V99* VN5* VC55 VN2* VN2* VC1
VN5* VN5*     VN5* V91* V91* V91*
V90* V90*     V99*
  V99*
(Halco,Coromant) GC415* GC415* GC415* GC415* GC415* H1P H1P H20 H10F
GC425* GC425* GC425* GC425* GC3015* GC3015* GC3015*
CT515+ GC435* GC435*   H10 GC415* H10F GC415*
S1P GC015* GC015*   GC415* GC315* GC315*
S10T GC225* GC225*   GC315* GC435* GC435*
GC015* GC1025* GC1025*   GC435* H13A H13A
GC225* S30T S30T   H13A
GC1025*   GC135*
    GC235*
(Seco) S1F S2 S4 SU41   H13 HX HX HX
(Igetalloy) ST10E ST20E ST30E U10E U2 H1 CG10 G2 G3
ST10P CG11
  G10E
(Mitsubishi) STi10 STi20 STi30 UTi10 UTi20 HTi10 HTi10T HTi20 HTi30
STi10T UTi20T HTi20T
(Tungaloy) TX10 TX20 TX30 TU10 TU20 TH10 T811* G2 G3
TX10S UX25 UX30 T822* UX25 G1F T802* G2F T813*
TX10D N308+ N350+ T802* T823* T821* T823* T802*
N302+ X407+ T813* T823* T803* T801* T803* T823*
X407+ T822* T553* T803* T813* T811* T813* T803*
T822* T802* T370* T260* T260* T802* T530* T813*
T802* T823*       T823* T221* T530*
T823* T803*       T803* T370* T221*
T803* T813*       T813*   T370*
T813* T553*       T530*
  T370*       T221*
          T370*
(Widia) TTX TTS TTS AT15 AT15 HK15* THM THM THR
TK15* TK15* TTR AT10 TK15* HK15* HK15* HK15*
TN25* TN25* TTM HK15* HK15*
  TN35* TK15*   TN25*
    TN25*   TN35*
    TN35*
(Walter) WP1 WP1 WP3   WK1 WK1 WK1 WK1
WHN33* WTN43* WHN53*
WTN33*   WTN43*
(Hertel) CP1* CP1* CP3* CM2 CM3 CP1 CP1
CP3* CP3* CM2* CM3 CP3 CP3
CM2* CM2* CM3* KM1 CM2 CM2
CM3* CM3*   CF3 KM1 CM3
P10 P20 CF2*   CF3 KM1
CF2* CF2*       CF3
