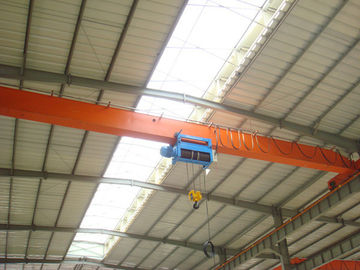

Steel Structure Electric Hoist Single Girder Crane , 1 Ton Single Beam Overhead Crane

Steel Structure Electric Hoist Single Girder Crane , 1 Ton Single Beam Overhead Crane
Steel Structure Electric Hoist Single Girder Crane , 1 Ton Single Beam Overhead Crane

Large Image :  Steel Structure Electric Hoist Single Girder Crane , 1 Ton Single Beam Overhead Crane

Product Details:
Place of Origin: Hangzhou, China
Brand Name: SINOCRANE SINOHOIST
Certification: CE
Model Number: LDH
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Plywood case or Fumigated wooden case or Nude package
Delivery Time: 30 days
Supply Ability: 200 sets per month
Detailed Product Description
Span: 7.5, 8, 15, 17, 22.5 M Or As Request Lifting Height: 6, 9, 12, 18, 24, 30 M
Lifting Capacity: 1 Ton Application: Outdoor Storage, Indoor Workshop, Etc
Condition: New Overload Protection: Included
High Light:

single beam crane

,

overhead travelling crane

Steel Structure Electric Hoist Single Girder Crane , 1 Ton Overhead Crane




Product Description

Such crane is characterized by small wheel load, little noise and few faults.
LDH series single girder overhead crane is designed basing on LD type crane which has more

reasonable structure and lighter in weight. This crane belongs to heavy duty crane. Lift capacity is

1 ton to 10 tons, span from 7.5m to 22.5m, working condition is A3-A5, working temperature is -25°C to +40°C.



 Features

1. Material: All compression structural part of crane’s components chosen material with fine quality

and meet regulation. The important material has quality guarantee and inspection report.


2. Wire rope hoist: smaller size but better performance. Less noise and outstanding mechanical design.




3. Motor: Drive motor must use China Top Brand: Jiangte Motor. Manufacturer have good achievement

used and provided detailed and actual parameter prove that it is good performance product.

Insulation class ≧ F; Protectiveclass ≧ IP54.



4. Welding: In view of important welding seam and stress is more than tension weld of 70% allowance

stress, conducting fault detection check and take out 5% weld length by ultrasonic test. Inspection

report provided to user.



5. Electric system: Inverter from famous brand ABB can make lifting and traveling in any speed you

want specifically for your work.


6. Control panel: 3 ways are optional based on budget or need: Cabin with joystick panel, wireless

control panel or pendent control panel.


7. Painting: All steel is treated by sand blasting before doing paintings. There are 3 layers of paintings.

The bottom layer is zinc painting to prevent from rusting. The color of top surface should be average.


8. Limit switch for safety: mechanical limit switch: overload limit, height limit, rail end stop limit for

traveling.

Electric protection: short circuit protection, lose phase protection,

low-voltage protection, power failure protection, over current protection.





specifications



Capacity 1, 3, 5, 9, 10t,16t

Span

m

7.5-11

11.5-12

12.5-14

14.5-17

19.5

22.5

Duty classification

A3~A5

Hoist duty class

M3~M5

Lifting height

m

4,6,9,12,18,24,30

Speed

Lifting V1

m/min

8

Lifting V2

8/0.8

Lifting V3

-

Trolley

10;  20;  25;  30

Crane

20;  30;  40;  60;  75

Wheel load

Max

KN

5.83

5.71

5.89

6.14

6.43

6.71

Minimum

5.15

5.67

5.77

5.95

6.43

6.71

Weight

Hoist

KG

990

Crane

3970

4310

4370

5600

6650

7780

Power



3 phase 220V-600V



Applications


1. Light duty cranes for repair shops, light assembly operations, service buildings, light warehouses,

where service requirements are infrequent.
2. Extra heavy duty cranes for steel mills and other heavy engineering purposes. Cranes designed for

hot metal application on request.

3. Extra heavy duty cranes for steel mills and other heavy machine shops, steel warehouses, heavy

fabrication shops, paper mills etc. with magnet and bucket operation for scrap yards, fertilizer plants

& induction furnace.
4. Medium duty cranes for machine shops and general industrial use both indoor and outdoor

application.



Competitive Advantage


1. Adjustable speed if client request.
2. Desiged base on DIN standard from German.
3. Light self weight, low noise and few faults, generally used in normal working condition.
5. Save the power, lower wheel load, so it can reduce the cost of support beam.
