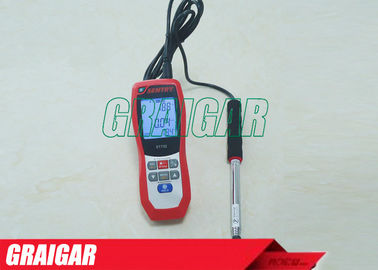

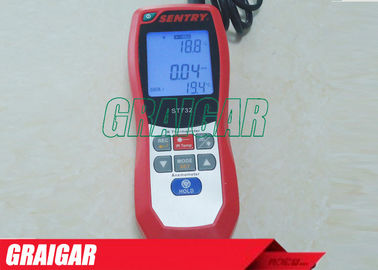

Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement

Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement
Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement

Large Image :  Hot Wire IR thermo-Anemometer Infrared Thermometer SENTRY ST732 Air Velocity Air Flow Temperature Measurement

Product Details:
Place of Origin: China
Brand Name: SENTRY
Certification: CE/ROHS/SGS/ISO9001
Model Number: ST732
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: negotiation
Packaging Details: Packed in carrying case firstly, and then reinforced with export carton for outer packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union, Paypal, L/C, MoneyGram
Supply Ability: 100 pieces per week
Detailed Product Description
Measurement: Air Velocity:m/s, Ft/mim, Km/h, Mile/h, Knots; Air Flow: CMM, CFM; Temperature:°C And °F Air Velocity Range: 0.00~40.00 M/s, 0.1~7874.0 Ft/min, 0.00~144.00 Km/h, 0.00~89.50 Mile/h, 0.00~77.75 Knots
Air Velocity Resolution: 0.01 M/s, 0.1 Ft/min, 0.01 Km/h, 0.01 Mile/h, 0.01 Knots Air Velocity Accuracy: ±(0.03 Ms+3% Of Reading); ±(5.9 Ft/min+3% Of Reading); ±(0.11 Km/h+3% Of Reading); ±(0.07 Mile/h+3% Of Reading); ±(0.06 Knots+3% Of Reading)
IRT Temp. Range: -32~537.5°C (-25.6~999.5°F) IRT Accuracy: -32~-20°C (-25.6~-4°F): ±3°C (±5.4°F), -20~100°C (-4~212°F): ±2°C (±3.6°F), 100~537.5°C (212~999.5°F): ±2%
D/S Ratio: 30:1 Emissivity: 0.10~1.00 Adj.
Operation Temperature: 0~50°C (32~122°F); 10~90% RH
High Light:

environmental test equipment

,

environmental monitoring equipment

Hot Wire IR thermo-Anemometer infrared thermometer SENTRY ST732 Air Velocity Air Flow Temperature measurement





Features
Simultaneous display of air velocity plus ambient temperatures
Combination of hot wire and standard thermister, deliver rapid and precise measurements event at low velocity
Wide range measurement of air velocity
Multi-functions for measurement: m/s, km/h, ft/min, knots, mile/h, CMM (732/733), CFM (732/733)
Infrared thermometer measures remote surface temperature to 537.5°C(999.5°F) with 8:1 (730/732)/30:1 (733) distance to spot ratio
Data hold and record / recall maximum, minimum and average reading
Auto power off after 10 minutes of idle (30 minutes with AC power)


Specification

Specifications ST730 ST732 ST733
Measurement

Air Velocity:m/s, ft/mim, km/h, mile/h, knots

Temperature:°C and °F

Air Velocity:m/s, ft/mim, km/h, mile/h, knots

Air Flow: CMM, CFM

Temperature:°C and °F

Air Velocity Range 0.00~40.00 m/s, 0.1~7874.0 ft/min, 0.00~144.00 km/h, 0.00~89.50 mile/h, 0.00~77.75 knots
Air Velocity Resolution 0.01 m/s, 0.1 ft/min, 0.01 km/h, 0.01 mile/h, 0.01 knots
Air Velocity Accuracy ±(0.03 ms+3% of reading); ±(5.9 ft/min+3% of reading); ±(0.11 km/h+3% of reading); ±(0.07 mile/h+3% of reading); ±(0.06 knots+3% of reading)
IRT Temp. Range -32~537.5°C (-25.6~999.5°F)
IRT Accuracy -32~-20°C (-25.6~-4°F): ±3°C (±5.4°F), -20~100°C (-4~212°F): ±2°C (±3.6°F), 100~537.5°C (212~999.5°F): ±2%
D/S Ratio 8:1 8:1 30:1
Emissivity 0.95 fixed 0.95 fixed 0.10~1.00 Adj.
Sample Time Approx. 0.5 sec.
Operation Temperature 0~50°C (32~122°F); 10~90% RH
Weight 320 g (11.29 oz.) 320 g (11.29 oz.) 310 g (10.93 oz.)
Dimension

Main: 184 x 70 x 40 mm (7.24 x 2.76 x 1.57 inch)

Telescope probe: approx. 1800 mm (70.87 inch) include wire rod

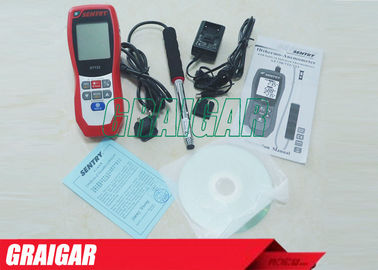

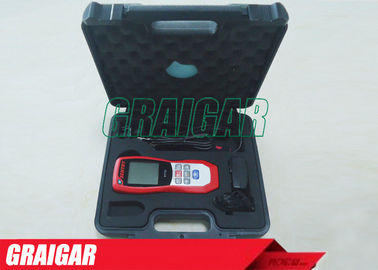

Accessories 9V Battery, Instruction manual, Carrying case, AC adapter, USB cable, CD (732/733)


Function Table

Model Name ST730 ST732 ST733
Data Logging (2000 points) no yes yes
Time Interval no yes yes
PC Interface (USB) no yes yes
AC Power yes yes yes
Max / Min / Avg yes yes yes


Applications
Environmental testing
Ventilation system
Refrigerated case
Fans / Motors / Blowers
Far distance temp. monitor
Flow hoods
Air conveyors
Furnace velocity
