High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm

High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm
High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm

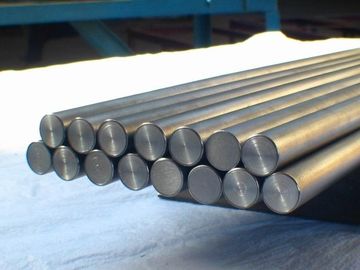

Large Image :  High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm

Product Details:
Place of Origin: China(Mainland)
Brand Name: SX STEEL
Certification: SGS,ISO,BV
Model Number: MONEL 400
Payment & Shipping Terms:
Minimum Order Quantity: 200 KGS
Price: Negotiated
Packaging Details: Export standards or customer's requirements
Delivery Time: 20-45 working days
Payment Terms: L/C T/T Western Union
Supply Ability: 200 Ton/Tons / Year
Detailed Product Description
High Light:

high nickel alloy steel

,

nickel based alloys



High Temperature Anti Corrosion monel 400 round bar Nickel Alloy Steel ASTM B164 DIA 10mm 300mm



Quick Detail:

Place of Origin:

Japan/Shanghai

Type:

Nickel Bar

Application:

chemical, petrochemical, oil exploration, nuclear industry

Grade:

Nickel alloy

Ni (Min):

63%

Resistance (μΩ.m):

0.547

Powder Or Not:

Not Powder

Ultimate Strength (≥ MPa):

480

Elongation (≥ %):

35

Model Number:

Monel 400

Brand Name:

KDL

Color:

Silver grey







Description:



Monel 400 Chemical composition


Alloy

%

Ni

Cu

Fe

C

Mn

Si

S

Monel400

Min.

63

28











Max.



34

2.5

0.3

2

0.5

0.024


Monel 400 Physical properties


Density

8.83 g/cm³

Melting point

1300-1390 °C


Monel 400 Alloy minimum mechanical properties in the room temperature




Alloy state

Tensile strength
Rm N/mm²

Yield strength
R P0. 2 N/mm²

Elongation
A 5 %

Monel400

480

170

35

Characteristic as below Monel 400 is an extremely combination property that use for largest amount and most widely corrosion resistance alloy. This alloy in the hydrofluoric acid and fluoride gas medium with excellent corrosion resistance, as well as to the hot concentrated alkali. At the same time, is also corrosion resistant to neutral solution, sea water, air, organic compounds. An important feature of this is generally do not generate a stress corrosion cracking, good cutting performance.
Monel 400 Metallurgical structure
Monel 400 alloy is high-intensity single-phase solid solution.

Monel 400 Corrosion resistance Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 have corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 °C in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and amirate conditions corrosion below 585 °C due to the high nickel.







Applications:

Monel 400 alloy is a muti-purpose material in many industrial applications:
1. Seamless water pipe in the power factory
2. Sea-water exchanger and evaporator
3. Sulfuric acid and hydrochloric acid environment
4. Crude distillation
5. Sea-water in the use of equipment and propeller shaft
6. Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7. Manufacturing hydrochloric acid equipment used in the production of pump and valve.

8. Furnace components

9. Chemical processing

10. Food processing and Nuclear engineering.



Specifications:



Item name

Monel 400 Nickel bar

Standard

ASTM B164

Material

Ni200,Ni2001,Monel 400/k-500,Inconel 825 etc

Dia.

3.0~200mm

MOQ

200kg

Packaging

Plywood case lined with foam or as per clients request

Payment  terms

T/T or L/C at sight

Lead time

Within 10~15 days after deposit

Applications

Chemical Processing,Petrochemicals Industry, Oil Refineries, Pharmaceuticals, Fertilizers Plants, Sugar Mills, Textile etc



grade

Monel 400

 °C

temperature

 σbMPa

Strength of tensile

δ(%)

elongation

 HB

hardness

cold drawn state

-79

810

22



forging state

-253

980

38



annealing state

room temperature

510-580

40-60

120-160

hot working state

room temperature

620-800

30-60

160-280

cold drawn state

room temperature

650-850

30-50

180-260

annealing state

300

560

45



annealing state

400

498

47









Competitive Advantage:

1. Small quantity, short time delivery

If we have stocks, we can ship from a minimum of 1 kg sample in a few days.
We also manufacture custom-order materials in amounts of 300 kg and up

(Some materials are allowed 50 kg) in as few as 3 weeks.

2. High-precision thickness

We guarantee thickness tolerances that cannot be reproduced by competitors.
Example: t <0.30mm  Tolerance ±1 - 3 μm guaranteed

0.30 mm≤t  Tolerance ± 1% guaranteed

3. Ability to add multiple features

We are capable of adding a variety of features to metallic materials

(resin coating, plating, bonding different kinds of metal, multiage skiving, etc.).

 4. Unique technology and custom-made solutions

We provide customed solutions to your problems with our unique

technologies and well versed knowledge of materials acquired through

our experience of manufacturing 50,000 items.

 5. Choose the appropriate base metals for your needs

We carefully balance quality, delivery time and price,

procure various base metals from all over the world.

We manufacture appropriate products to your needs.

 6. To control metal structure(chemical formation)

We can manufacture ultrafine metal structures with a grain size of 1 μm.
Using finer grain sizes provides benefits such as harden-ability,

balancing strength and ductility, and precision press processing.

 7. Lower total cost

We taking your processing into account,

offer you reduce a total cost by using our product.

 8. Global network

Our plant located in Japan, Shanghai and Taiwan,

we also support flexibly local procurement and production transfer.

High Temperature Nickel Alloy Steel , Anti Corrosion monel 400 round bar ASTM B164 DIA 10mm 300mm 0
