High Efficiency CCM Continuous Casting Machine R8M 3 Strands

High Efficiency CCM Continuous Casting Machine R8M 3 Strands
High Efficiency CCM Continuous Casting Machine R8M 3 Strands High Efficiency CCM Continuous Casting Machine R8M 3 Strands High Efficiency CCM Continuous Casting Machine R8M 3 Strands High Efficiency CCM Continuous Casting Machine R8M 3 Strands High Efficiency CCM Continuous Casting Machine R8M 3 Strands High Efficiency CCM Continuous Casting Machine R8M 3 Strands

Large Image :  High Efficiency CCM Continuous Casting Machine R8M 3 Strands

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R8M 3 strands
Payment & Shipping Terms:
Minimum Order Quantity: 2 strand
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

billet continuous casting machine

,

steel casting machine



High Efficiency CCM Continuous Casting Machine R8M 3 Strands



Low energy and high efficiency

radius: R8M

Strand number: 3 strands

with ISO certification

safe operation





1. Basic standby technical parameters:



Steel billet casting machine radius

8m

Strand quantity

3 strands

Ladle support type

Ladle turret or Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Gas and water cooling , 2 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic or flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed





2.  Technical process description and capacity of steel billet CCM

Induction furnace:



Nominal capacity

40T

Tap-to-tap cycle

60min

Furnace quantity

3sets





Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

400,000t/year



3. Casting speed, productivity and strand quantity

R8m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:



Casting sectional area(mm)

 180x180

200×200

220×220

Casting speed(m/min)

1.6

1.8

2.0



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

20hour

(tons)

Annual output(300days)

(tons)

1

180×180

1.6m/min

21.98

439

131,700

2

200×200

1.8m/min

27.13

543

162,900

3

220×220

2.0m/min

36.47

729

218,700





The calculation results is the ideal state of the production, please according to own actual situation of adjustment.



Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2





4. CCM equipment parts list



Equipment name Weight Model and specification Unit
   1 Ladle turret 21T set 1
Hydraulic drive,with weighting
2 Tundish arriage 12.5×2=25T set 2
High and low leg type
3 Tundish 6×2=12T set 2
4 Slag Pot 2.5T set 1
5 Long sleeve protection device 0.3T set 1
5 Tundish baking 5.3×2=10.6T set 2
6 Tundish nozzle   set 2
baking
7 Casting operation   set 2
boxes cantilever
rack
8 200×200 Mould   set 3
9 Mould cover   set 3
10 Oscillator device   set 3
11 Spray header   set 3
12 Oriented segment   set 3
13 Rigid dummy bar   set 3
14 Dummy bar storage device   set 3
15 Straightening and   set 3
withdrawal machine
16 Straightening and   set 1
withdrawal machine
common base
17 Shears approach roller   set 3
18 Billet clamping   set 3
device
19 Torch cutting   set 3
machine
20 Collection cutting   set 1
 head device and
 hanging pot
21 After cutting roller   set 3
22 Transport rollerⅠ   set 3
23 Transport rollerⅡ   set 3
24 Knockout roller   set 3
25 Fixed bezel   set 3
26 Shifting steel 6m length set 3
 machine
27 Collection cooling   set 1
 bed
28 Caster body cooling include a backwash filter set 1
 system
29 Caster cover   set 1
30 Automatic Length   set 3
 System
31 Gas source processor deal instrument gas set 1
32 Steel platform     1
  Hydrauli,Lubrication,pneumatic system
1 Host hydraulic station   set 1
2 The billet hydraulic station   set 1
3 Hydraulic lift tailgate   set 2
4 Centralized grease lubrication station   set 6
5 Hydraulic piping   set 1
6 Lubrication piping   set 1
  CCM 3-Electric
1 Operating station
2 Software Package
3 PLC   set 3
4 ET-200 PLC   set 1
Host hydraulic station ET-200 PLC
5 Inverter
W-S machine inverter   set 3
(heavy type) power:11 kW
Shears approach roller inverter power:4KW   set 3




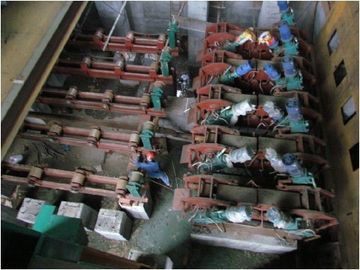

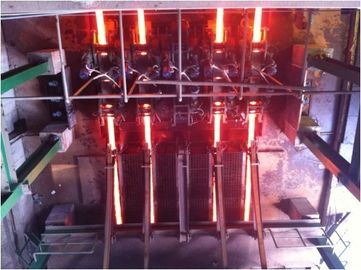

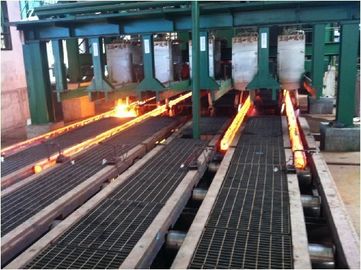

High Efficiency CCM Continuous Casting Machine R8M 3 Strands 0



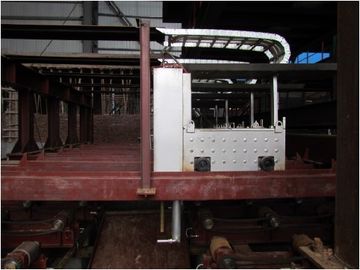

High Efficiency CCM Continuous Casting Machine R8M 3 Strands 1



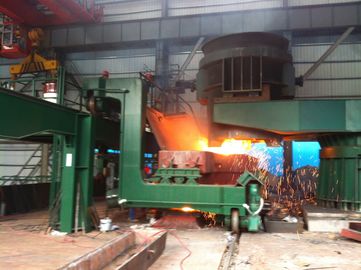

High Efficiency CCM Continuous Casting Machine R8M 3 Strands 2
