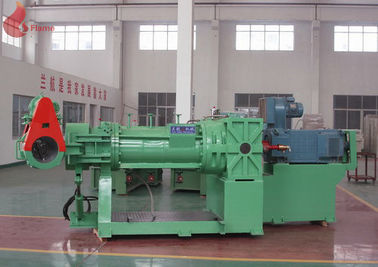

Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet

Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet
Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet

Large Image :  Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet

Product Details:
Place of Origin: CHINA
Brand Name: FLAME
Certification: ISO9001:2000, CE
Model Number: XJL Rubber Strainer Extruder
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 680,000~80,000/set
Packaging Details: Standard Export Packing
Delivery Time: 60 working days
Payment Terms: T/T
Supply Ability: 10 sets/60 days
Detailed Product Description
Color: Green Die Head: Contains Rubber Cutting Device
Motor: ABB Screw Material: Alloy Steel
High Light:

rubber strainer extruder

,

plastic extruding machine

Application:

Rubber

Certification:

ISO

Main Motor:

132 KW

Product Name:

Strainer Extruder

Production Capacity:

800-1200 Kg/hr

Screw Diameter:

250mm)



Description:



The filter Rubber raw material enters the rolling mill to filter away impurities such as scrap iron, stones, etc.

1. Screw made of special steel is with nitrogen treatment, durable.

2. Jacketed type barrel can be cooled for cooling the rubbers effectively.

3. Double head strainer to be quickly and easily exchanged.

4. Smoothly running and high output.

5. Equipped with die-head auto opening system when electric power is cut off.





Applications:



It is used for filtrating the gelled rubber before it enters the calender to ensure the purity of the raw material and protect the calendar from damaging.



Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet 0Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet 1Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet 2Green 132 Kw Rubber Strainer machine With Electrical Control Cabinet 3

Specifications:



Model

XJL-160

XJL-200

XJL-220

XJL-250

XJL-300

Screw diameter

150

200

220

250

300

Screw L/D ratio

5:1

5:1

5:1

5:1

5:1

Rotation Speed

50

55

50

50

50

Power

75kW DC

90kW DC

110kW DC

132kW DC

160kW DC

    Capacity

200-500

600-1000

800-1500

1800-2000

2000-2500





I. General Description:



1. Screw Diameter: ¢10″(250mm)

2. Screw Rotate Speed: Max 50 RPM

3. Capacity: 800-1200 kg/hr

4. Main Motor Power: 132 KW DC, 1000RPM,Hangzhou Henli Motor





II. Equipment Component:



1. Screw

2. Barrel

3. Double Die Head, Cut Blade

4. Chassis

5. Drive Unit

6. Lubrication and Oil Pressure Unit     t

7. Electrical Control Cabinet

8. Piping





III. Detail Specification:



1. Screw 1 Set

(1)¢10″single screw adopt 38CrMoAlA nitrogen treatment. Screw hollow can connect cooling water.

(2) Revolution connection, including stainless steel pipe. Connection adopt domestic famous brand.

2. Barrel

(1) Type: Jacketed type design, can connect with cooling water.

(2) Material: Outside barrel adopt carbon steel, inside adopt wear proof alloy steel.

(3) Barrel: Die head adopt digital display temperature controller.

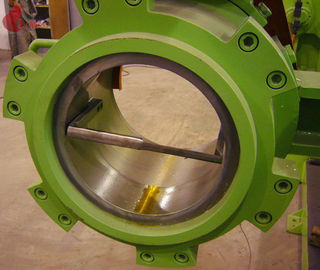

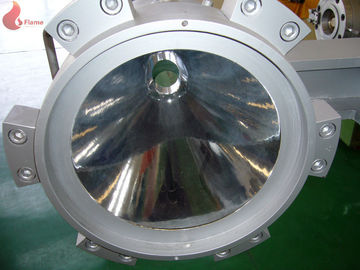

3. Die Head



(1) Die head adopt double type, can equipped with jacketed type and can connect with cooling water.

(2) Die head tighten adopt oil pressure method.

(3) Filter board and gasket.

(4) Blade adopts two 2.2KW motor, reduction box and chain drive.



4. Chassis 1 Set



(1) Profile Steel Welding, tempering treatment.



5. Drive Unit 1 Set



(1) Hard surface gear: Including thrust bearing design. Output shaft connect with screw directly. Lubrication adopt splash system. 1 Set

(2) Coupler: Rimmed coupler between motor and reduction gear

(3) Main Motor: 132 KW DC,1000 RPM. Made in Hangzhou Henli.



6. Lubrication and Oil Pressure Unit 1 Set



(1) Bearing Lubrication: Force lubricated by inner motive force inside bearing box.

(2) Oil Pressure Unit:1. Die head clamp and turn on.

2. Including oil tank ,oil pump and accumulator ,can open die head when power cut, easy for cleaning.



7. Electrical Control Cabinet 1 Set



(1) Control cabinet 1 unit, operate table 1 unit, surface spraying plastics treatment.

(2) Start main motor loop.

(3) Die head start loop when power cut.

(4) South Korea LG Contactor, main motor use England eurotherm DC speed control. Cut blade use Fuji frequency control. Temperature control adopt RKC or OMRON from Japan. Indicate lights, button made in Shanghai.





Equipment installation and commissioning:



1, The machine is installated in an overall concrete foundation, the thickness of the base is above 1.2 meters.

2, The concentricity tolerance of shaft of the motor and input shaft of the reducer is less than 0.3 mm.

3, Idle time is not more than 10 minutes, and the injection needs a small amount of lubricating oil between the screw and bushing.

4, Can not be reversed

5, Need to clear the material after finish using the machine.
