Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw
Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

Large Image :  Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw

Product Details:
Place of Origin: Hebei
Brand Name: Xintian
Certification: CE ISO9001:2000
Model Number: PYQ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: pallet
Delivery Time: 30-90 days
Payment Terms: TT,L/C
Supply Ability: 2 sets per month
Detailed Product Description
High Light:

corrugated carton box making machine

,

automatic corrugated box making machine

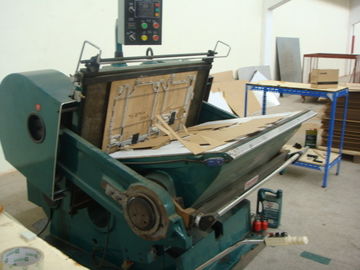

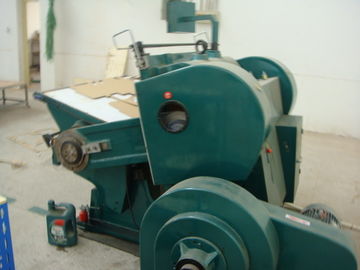

Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw


Functions and Features:

Usage:

The flat creasing and die-cutting machine is special equipment for creasing and cutting ordinary cardboard, corrugated board, plastic and leather. In general, it is applicable to printing packaging decoration and plastic industries. This machine is characterized by compact structure, fine workmanship, big pressure, high precision and easy and reliable operation, etc.


Use and characteristics :

1. High strength dve to one piece casting by using top quality materials for machine body .

2. Smooth running , big pressure and low noise are obviously remarked as 3-step helical

  gear mechanism is adopted .

3. Single plate electromagnetic clutch is sensitive sub reliable .

4. Operation altitude is reasonably arranged , moving-bed opens to its optimum .

5. Safty system is reatly reliable .

 Note :( The color of equipment can be from choose )

Technical parameter

Model

Inner chase size

speed

Max.embossing length

Motor power

Machine weight

Overall dimensions

ML750

750*520mm

25±3

<15mm

2.2kw

1800kg

1300*1300*1700mm

ML930

930*660mm

20±3

<25mm

3.0kw

3000kg

1780*1590*1450mm

ML-1100

1100*800mm

20±2

<32mm

5.5kw

4500kg

1800*1900*1480mm

ML-1200

1200*820mm

20±2

<35mm

5.5kw

4900kg

1800*2000*1520mm

ML-1300

1300*920mm

18±2

<40mm

7.5kw

5600kg

1800*2120*1600mm

ML-1400

1400*1000mm

18±2

<40mm

7.5kw

6500kg

1800*2220*1650mm

ML-1500

1500*1050mm

18±2

<50mm

7.5kw

7500kg

1800*2300*1700mm

ML-1600

1600*1150mm

18±2

<50mm

7.5kw

8500kg

1800*2420*1750mm



Corrugated Cardboard Manual Flat Creasing And Die-Cutting Machine 5.5kw / 7.5kw 0
