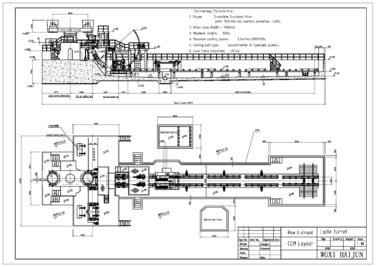

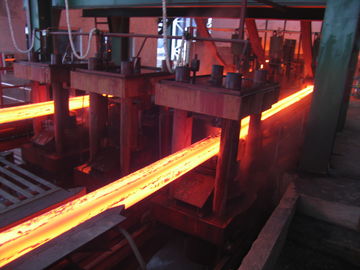

2 Strands Steel Casting Machine

2 Strands Steel Casting Machine
2 Strands Steel Casting Machine 2 Strands Steel Casting Machine

Large Image :  2 Strands Steel Casting Machine

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R4M 2strands
Payment & Shipping Terms:
Minimum Order Quantity: 2 strands
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

die casting steel

,

steel making machine



2 Strands Steel Casting Machine



radius: R4M

Strand number : 2 strands

with ISO certification

advanced design

safe operation





Description:



1. Basic standby technical parameters:

Steel billet casting machine radius

4m

Strand quantity

2 strands

Ladle support type

Ladle turret,Ladle car,ladle mounts

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Manual cutting

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

15T

Tap-to-tap cycle

60min

Furnace quantity

2set



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

100,000t/year



3.  Casting speed, productivity and strand quantity

    R4m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

80×80



100×100



120×120



Casting speed(m/min)

3.0

2.8

2.6



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

80×80

3.0m/min

7.42

178

58,766

2

100×100

2.8m/min

10.81

259.

85615

3

120×120

2.6m/min

15.69

377

124,266



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2



 4. CCM equipment parts list

No.

Machine name

Weight

Unit

Quantity

Equipment body







1

ladle car

5T×2=10T

set

2

2

Tundish carriage

2T×2=4T

set

2

3

Tundish

1.4T×2=2.8T

pec

2

4

Mould 100×100

0.53×2=1.06T

set

2

5

Mould roller

0.01×2=0.02T

set

2

6

Mould cover

0.1T×2=0.2T

set

2

7

Mould oscillator

1.5T×2=3T

set

2

8

Secondary cooling spray tube

0.5T×2=1T

set

2

9

Secondary cooling guide part roll

0.5T×2=1T

set

2

10

Secondary cooling overboard steam drain system

1.1T

set

1

11

Withdrawal and straightening machine

6T×2=12T

set

2

12

Dummy bar

0.9T×2=1.8T

set

2

13

Dummy bar storage device

0.7T×2=1.4T

set

2

14

Roll table before cutting

1.5T×2=3T

set

2

15

Simple cooling bed

1.2T

set

1

16

Billet head and cut off slag collection system

0.5T

set

1

17

Roll road

1.5T×2=3T

set

2

18

Billet out-going roller

1.5×2=3T

set

3

19

Steel lateral shifting machine

3T

set

1

20

Flame cutting machine

1T×2=2T

set

2

21

Hydraulic station system

1.6T

set

1

22

Water cooling station

1.6T

set

1

23

Steel platform

45T



1

Three Electric System





1

Electric control equipment



set

1

2

Scene meter



set

1

3

Computer system



set

1

Installation material



1

Electric instrument system material

1T

Set

1

2

Hydraulic piping system material

1T

Set

1

3

Cooling water system material

1T

Set

1

Offline equipment



1

Mould repairtable



Set

1

2

Mould support stand



Set

1

3

Pair arc template



Pair

2
