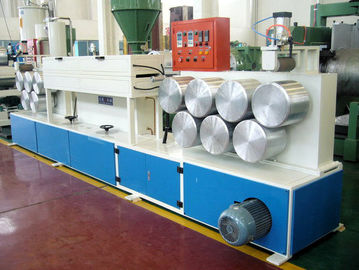

Recycled PET Strap Production Line Hydraulic , high speed strapping machine

1. Introduction of Product
Hydraulic net changer 100% Recycled PET Flake Single Strap Production Line
PET Strap Band Extrusion Line is new equipment which is developed by our company through long-time production experience, combining characteristics of advanced plastics industry. It adopts frequency motor as its power, soft connection of mechanical transmission with functions of high precision, smoothness, low noised, saving power and time.
PET strap band has high stretching quality, resist high temperature. It is mainly suitable for package. Its advantages are strong pulling force, good extension, rust resistance, lighter density, convenient operation, safe, reliable and cheap price, etc.

2. Quick Detail:

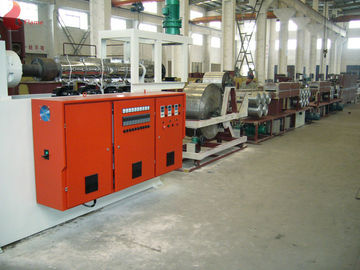

PET Strap Production Line consists of LDAS,calender ,extrusion tool,chilled-water storage,stretcher,Tension setting machine winding machine and other machine


3. Description:

  1.    Air feeding system                    1set
  2.    PET drying system                    1set
  3.    Single screw extruder (forced feeding, Hydraulic net changer, die head)
  4.    Constant temperature sink              1set
  5.    First tractor                          1set

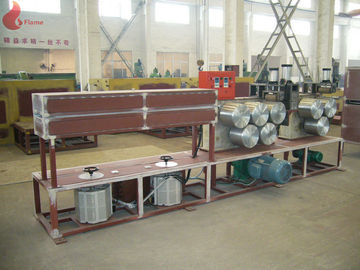

  6.    Short-wave infrared heating oven        1set
  7.    Tensile machine                      1set
  8.    Embossing machine
  9.    Embossed and tensile machine
 10.    Tight hot setting machine               1set
 11.    Third tractor                         1set
 12.    Double winder                        1set
 13.    Auxiliary system
MKS-A mold temperature controller        1set (9kw/set)
Combination :  7-7-5-5
Total power: 150kw
Usually use power: 40-50kw/h
Capacity : 1.4-1.8t/day
The belt specification: width (12-19mm), thickness(0.6-1.2mm)


4. Applications:
PET Strap Production Line is made of polyethylene glycol terephthalate and other material which is a new kind of eco-friendly packing material that take the place of Steel Strip. Through the development of new material , the cost of it goes down rapidly. Now PET Strap Production Line is used a lot in the steel industry, chemical fiber industry, aluminum industry, paper brick, ceramics, screw industry, the tobacco industry, electronics industry, textile industry and wood industry, etc. it is the new  high strength  Straps and widly used around the world which take the place of Steel Strip.

5. Specifications:

PET-SJ65/30 single screw extruder

   1) Rack

     Use steel sections welded together, have a higher rigidity

   2) Gearbox (Changzhou gearbox)

     Product design using ZBJ19009-88 technical specifications provided, gears and shafts with high strength alloy steel material, precision gears for the GB10095-88, 6 level, tooth surface hardness HRC54-62, in the hollow output shaft is equipped with super.

The thrust bearing, to bear the work of the screw recoil. Bearings and oil seals and other major national quality standard parts are used. Machine capacity, and drive a smooth, low noise, high efficiency.

①    Reduction ratio: I = 16:1

②    Input power: 22kw

③    Hardened grinding gear

        3) Barrel and screw (with feeding device)

① Barrel and screw materials:  38CrMoA1A

② Nit riding depth: 0.3 ~ 0.6mm, nitride hardness: 740HV

③ Screw spiral edge roughness: 0.4μm

④ Screw aspect ratio: 30:1

⑤ The barrel surface roughness: 0.8μm

     4) Heating cycle

① Cast aluminum heater with 5 groups

② Heater power: 3 ~ AC380V, 50HZ three-phase star connection each 4KW

④    Heater diameter: φ130mm

     5) Cooling system

① Group with 5 cooling fans

② Power: 3 ~ AC380V 50HZ

③ longer attached to coupling sleeve 6 fans

     6) Main Motor

① Motor power: 22KW

② Power: 3 ~ AC380V 50HZ

3 Motor synchronous speed: 1500rpm

     7) The head flange

① Forging made of 45 steel finishing

② Chrome plated

     8) Electrical control cabinet

① Inverter

② Temperature Control District: 8 groups

③ Separate control cabinet

     10) Hydraulic Changer

     11) Die head

     12) Packaged with a billet mold

6. Competitive Advantage:

1) Raw material is dried via the CSG series drying system which is made by our company, its minus fourty degree centigrade dew point make the moisture content of the raw material no more than 40PPM possible, what’s more, it is useful for the solid phase condensation and increase sticks to the raw material;

2) After the dry system, raw material adopts the closed cycle expulsion system, no contact with the air outside, to assure the dry effect of the raw material;

3)The extruder adopts the PET special screw, the screw’s unique separation and mixing ability enable the material even plasticizing; Dosing and steady extrusion assure even length and width of the strap.

4) The mould is self designed, different standards are made to the mold; Leakage of the material is eliminated after the improvement of the melt exchanger.

5) Static casting machine replaces the early water trough to cool the facility, casting piece is cooled under the certain constant temperature, which improves the molecular longitudinal orientation, and increases the end product longitudinal strength;

6) Calefactive anneal treatment is made after the shape of the strap, to remove the stress left after the strech, this stabilizes the molecular orientation, alleviates the phenomenon/matter of depositing metamorphism;
    7) Fetching adopts double-stage winder, easy to operate.

7. Service:

1. Oversea installation guide.
2. Oversea test running
3. Ovsersea worker training
4. Technical support
5. Spare parts supply
6. Technical operation support
7. Formula and processing support

8. Option
This set of equipment is mainly composed of automatic feeding machine, drying machine (or dehumidification drying device), extruder, filters, die, sink, tractor unit, oven, stretching, heat setting, winding machines and other equipment.

9. Commercial Terms
1. Payment: 30% by T/T as advance payment, balance(70%) by T/T before shipment
2. Lead Time: 60 days after receiving the advance payment
3. Transportation: container, simple package ( PE film, salver)
4.Warranty period: From the day of the use of the machine in the buyer’s factory:
   (1) The mechanical Parts: 12 months
   (2) The electrical Parts: 6 months
5. Installations and Commissioning
   (1) Up to date commissioning has been made before shipment
   (2) Overseas Commissioning and charges
   one or two technicians will be sent to the buyer to guide the installation and commissioning of the            equipment if the customer requests.
   Customers pay the charge of our technicians.
   (1) Round-trip Airplane Ticket
   (2) Charges of transportation, accommodation and communication
   (3) The allowance for the technicians is USD 80 per day for one person.
   (4) An interpreter is needed.
6. Spare parts:
    Spare parts for one year are needed for the customers, and we suggest that customers should buy       the spare parts. (Fittings list will be provided.)
7. English manual, Figuration drawing, and footing drawings are provided.
