Product Details:
Payment & Shipping Terms:
|
| Temperature Range(℃): | RT～1200℃ | Heating Time: | RT～1200℃ About 60min |
|---|---|---|---|
| Accuracy: | ±1 | Power: | 220V |
| Treatment: | Heat Treatment | ||
| High Light: | industrial drying ovens,custom industrial oven |
||
2. Product Introduction:
2.1Quick Detail:
|
Model
|
Inner Size W*H*D(cm) |
External Size W*H*D(cm) |
Temperature Range(℃) |
Heating Time |
Accuracy |
Power |
Rate of work(kw) |
|
LY-612
|
12×8×20 |
48×65×56 |
RT～1200℃ |
RT～1200℃ About 60min |
±1 |
220V |
3 |
2.2 Application:
High temperature ashing furnace for special baking process can be used for aging test of electronic components and plastic chemical products together with iron preheat, quenching, burn, stewing, annealing, ashing test, concise and other high fever processing experiment, ect.
2.3 Characteristics:
1. SECC steel plate with fine powder paint processing outside and high temperature ceramic silicon carbide inside.
2. Top heating element,long working life.
3. Imported PID digital thermometer, accurate temperature control, simple operation.
4. Fast heating and cooling, economical and quick.
5. Over-temperature protection, over load automatic power-off system.
6. Cyclic system: thermal radiation automatic power-off system.
7. Able to pass Nitrogen gases.
8. Temperature controller: Imported programmable controller, automatic constant temperature,rapid temperature compensation.
9. Timer:start timing when temperature achieves, power-off and alarm when time is over.
2.4 Specifications:
|
Model
|
Inner Size W*H*D(cm) |
External Size W*H*D(cm) |
Temperature Range(℃) |
Heating Time |
Accuracy |
Power |
Rate of work(kw) |
|
LY-612
|
12×8×20 |
48×65×56 |
RT～1200℃ |
RT～1200℃ About 60min |
±1 |
220V |
3 |
|
LY-625
|
25×16×40 |
65×74×79 |
RT～1200℃ |
RT～1200℃ About 60min |
±1 |
380V | 9 |
|
LY-630
|
30×20×50 |
69×81×88 |
RT～1200℃ |
RT～1200℃ About 60min |
±1 | 380V | 12 |
|
LY-640
|
40×40×60 |
80×95×96 |
RT～1200℃ |
RT～1200℃ About 60min |
±1 |
380V |
16 |

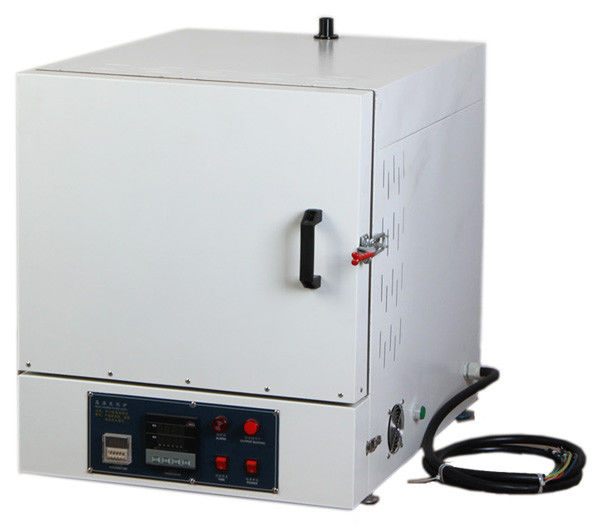

2.5 Picture:
