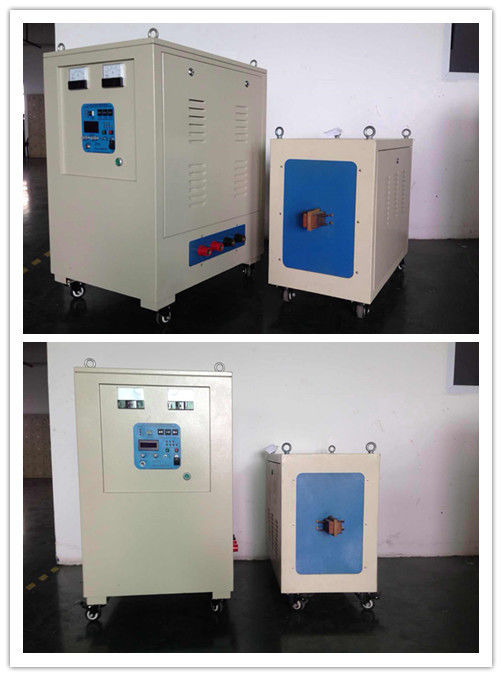

Industrial Melting Medium Frequency Induction Heating Machine 100KW

Industrial Melting Medium Frequency Induction Heating Machine 100KW
Industrial Melting Medium Frequency Induction Heating Machine 100KW

Large Image :  Industrial Melting Medium Frequency Induction Heating Machine 100KW

Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, ROHS, SGS
Model Number: GYM-100AB
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: T/T
Supply Ability: 500set/month
Detailed Product Description
High Light:

Induction Heating device

,

Induction Heating Machine

Industrial Melting Medium Frequency Induction Heating Machine 100KW







Quick Details



Place of Origin: Guangdong, China(Mainlan)

Brand Name: GY

Model Number:GYM-100AB

After-sales Service Provided: Enigneers available to service machinery overseas

Input power: Three phase 340V-430V

Input current: 150A

Output current:400-4000A





Specification



Model GYM-100AB (Three phase)
work power 340V-430V
Maximum input current   150A
Output power   100KW
fluctuating frequency 1-10khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 820x600x1060mm
transformer : 870x430x750 mm
net weight main : 123gk
transformer : 84kg





Characteristics of GY induction heating machine Melting Furnace



1. Better Heating penetration and even temperature inside the melting metal.



2. GY medium frequency induction heating machine field force can stir the melting pool to achieve better melting quality.



3. Melting the Maximum quantity by the recommend machine according to above table the melting time is 30-50 minutes,the first melting whenthe furnace  is cold ,and it will take about 20-30minutes for the later melting when the furnace is already hot.



4. Suitable for melting of steel,cooper,bronze,gold,silver and aluminum,stannum,maqnesium,stainless steel.





Compare with other equipment melting.



    1. VS resistance heated furnace

    a. High heat efficiency,melting fast.

    b. Small size,save energy 30%.

    c. Resistance or silicon carbide stock easy to damage.





    2. VS Coal,Gas,diesel furnace

    a. Facilitate the adjustment solution composition and temperature,the bubble of foundry less 1/3 to 1/4,

        reject rate down 1/2 to 1/3,so that cast have a higher mechanical strength.

    b. Reduced the oxidation of burning.

    c. Induction melting can melt scrap of processing and the small pieces because of its electromagnetic

        stirring effect.reducing the cost of materials.Reduce environmental pollution;noise is far below the

        towering.equipment. Labor intensity of workers and working conditions have been improve;

    d. Cast iron crucible used in Coast and gas furnace is harmful to the aluminum alloy by increasing

        impurity. Graphite crucible used in induction melting without such disadvantages.



   3. VS SCR or Frequency Melting Furnace

   a. High heat efficiency, melting fast.

   b. Small size, save energy above 20%.

   c.  Electromagnetic stirring effect is slight so service life of crucible is extended.

   d. By adjusting the frequency to achieve power regulation, so melting speed fast, material elements of

       burning loss less and better energy saving, in particular the heating of stainlesssteel, copper,silicon,

       aluminum and other non-magnetic material, thus reducing the cost of the casting





   Advantages:



   1. Fast Heating

   2. Wide coverage of heating

   3. Easy Installation

   4. Easy operation

   5. Fast start-up

   6.Low power consumption

   7. High effectiveness

   8. Comprehensive protection

   9. Controllable temperature

  10. Comprehensive full load design

  11. Small size and light weight

  12. Elimination of high voltage
